4 Colours

Figure 4.1: A Reddit post on colours I randomly came across with.

4.1 Introduction

Consider the following scatterplot of the mpg dataset, showing engine displacement against highway miles per gallon:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG")

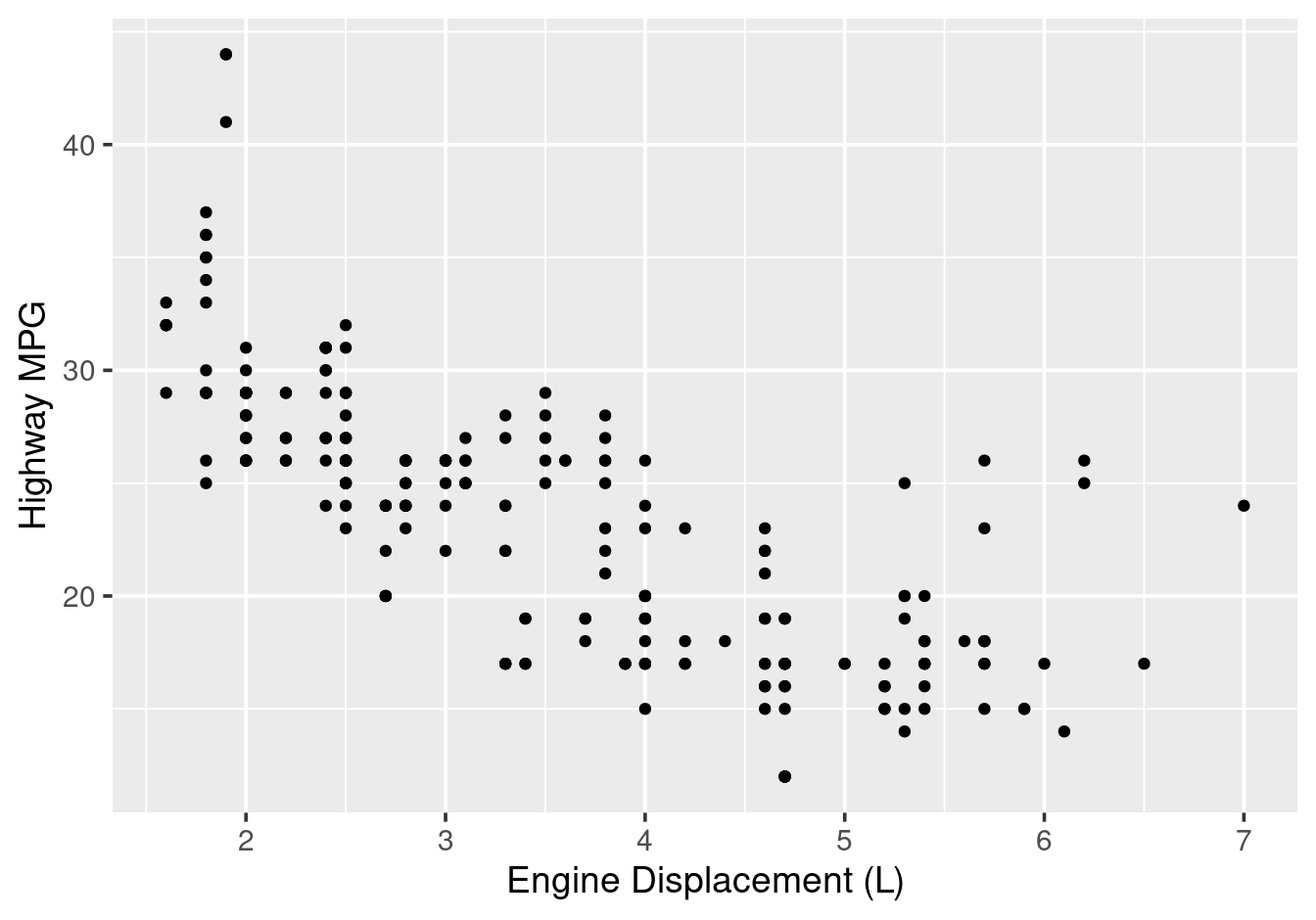

Figure 4.2: All points in one colour — the plot is not using its full potential.

This plot shows a clear negative relationship, but it is not making efficient use of one aspect of the visualisation: colour. All points are the same colour, which means we are missing an opportunity to encode additional information.

Suppose we want to distinguish points by the type of drive train (drv: front, rear, or 4-wheel drive). One approach is to manually filter the data and plot each subset with a different colour:

# Inefficient approach: manually filtering and plotting each subset
mpg_f <- filter(mpg, drv == "f")
mpg_r <- filter(mpg, drv == "r")
mpg_4 <- filter(mpg, drv == "4")

ggplot() +
  geom_point(data = mpg_f, aes(x = displ, y = hwy), colour = "red") +
  geom_point(data = mpg_r, aes(x = displ, y = hwy), colour = "blue") +
  geom_point(data = mpg_4, aes(x = displ, y = hwy), colour = "green") +
  labs(x = "Engine Displacement (L)", y = "Highway MPG")

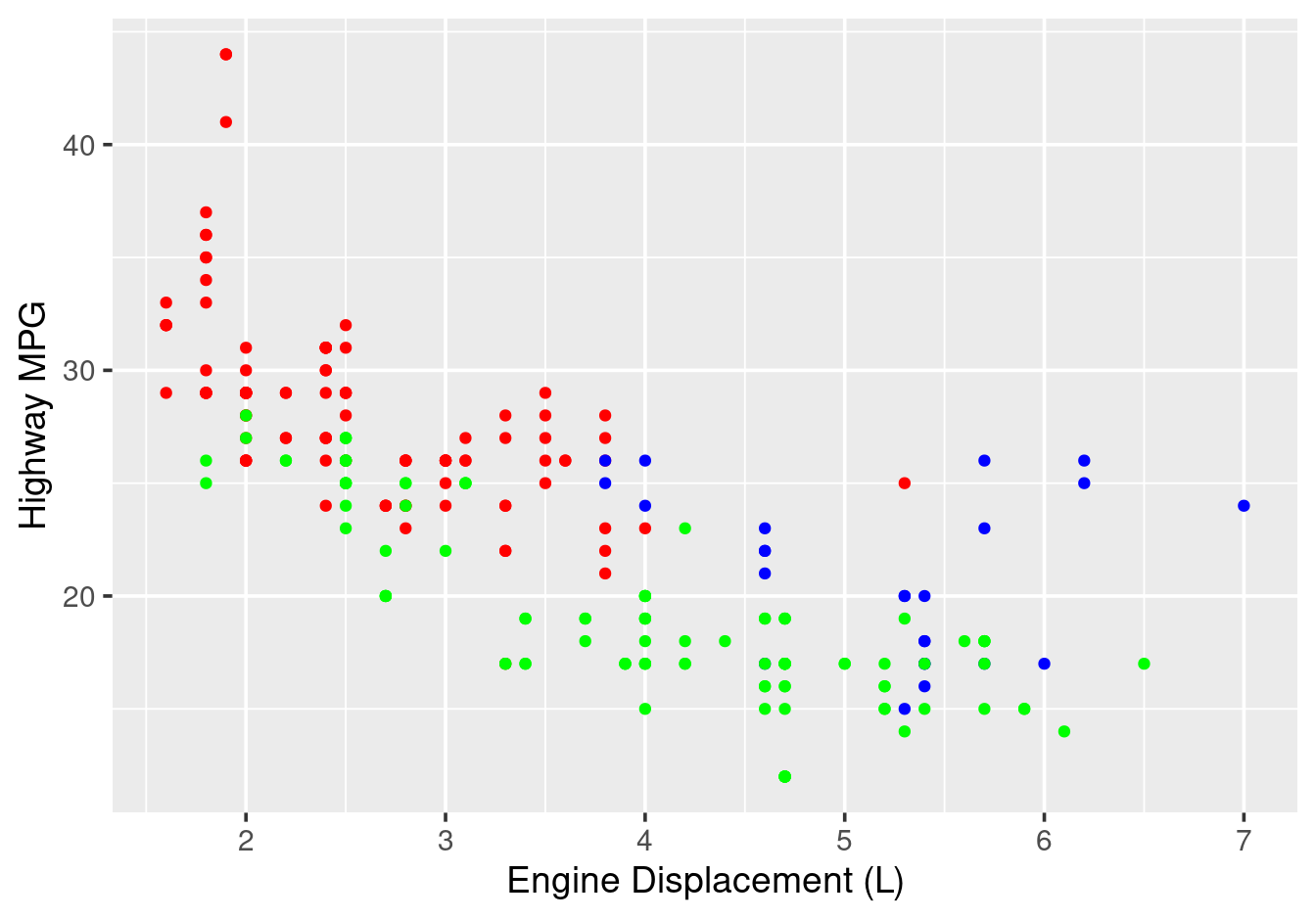

Figure 4.3: Manually splitting data into subsets — inefficient and error-prone.

This approach works, but it is inefficient and error-prone:

We had to create three separate data subsets
We had to write three separate geom_point() calls
There is no legend — the reader has no idea what the colours mean
If we add a fourth category, we need to modify the code in multiple places

There is a much better way.

4.2 Colour as an aesthetic

In ggplot2, colour is an aesthetic, just like $x$ and $y$. The $x$ aesthetic maps a variable (engine displacement) to horizontal position; the $y$ aesthetic maps another variable (highway MPG) to vertical position. In exactly the same way, the colour aesthetic maps a variable to colours. The scale functions control how this mapping works — which colours to use, how to interpolate between them, and so on.

This means we can include an extra dimension of data simply by adding the variable to the aes() function:

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

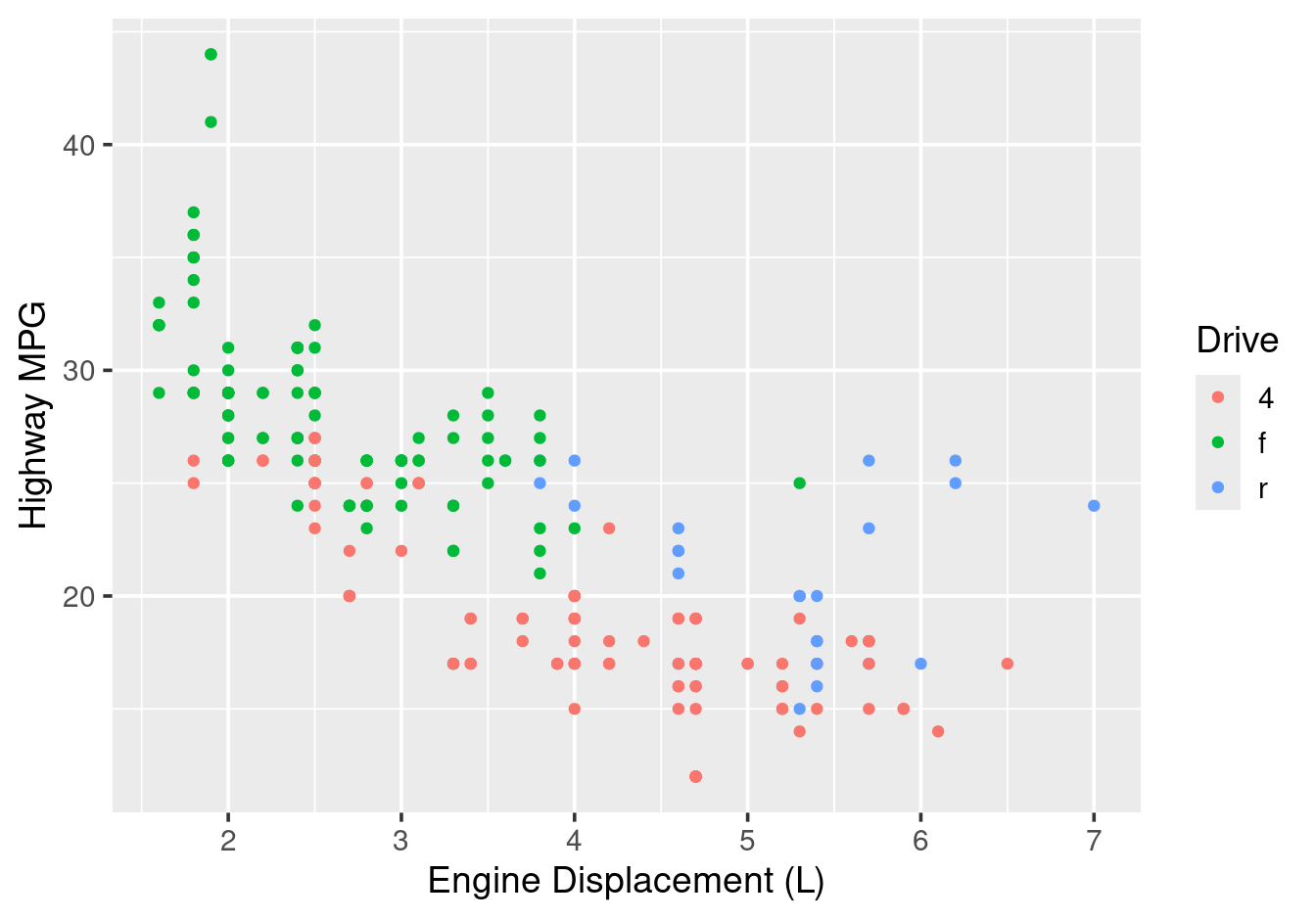

Figure 4.4: Using colour as a scale — one line of code, automatic legend.

With just colour = drv inside aes(), ggplot2:

Automatically assigns a distinct colour to each category
Creates a legend explaining the colour mapping
Handles any number of categories without code changes

4.2.1 Real-world examples

You will see colour scales used extensively in real-world visualisations:

Choropleth maps: Geographic regions are coloured by a variable such as population density, income, or election results. The colour scale transforms a numeric variable into a visual gradient across the map.
Weather forecast maps: Temperature, rainfall, or pressure are shown using colour gradients. Blue might represent cold temperatures, progressing through green and yellow to red for hot temperatures.
Heatmaps: Used in genomics, finance, and many other fields to show the intensity of values across a two-dimensional grid.

In all these cases, colour serves the same purpose: encoding an additional dimension of data that would otherwise require a third axis or separate plots.

4.2.2 Syntax: British and American spellings

ggplot2 is friendly to both British and American English. The following are completely equivalent:

# British spelling
aes(colour = drv)
scale_colour_brewer()

# American spelling
aes(color = drv)
scale_color_brewer()

Use whichever you prefer, but be consistent within your code. Throughout this chapter, we use the British spelling colour.

4.3 Colour vs fill: which aesthetic to use?

In ggplot2, there are two colour-related aesthetics: colour and fill. Understanding when to use each is essential:

colour: Controls the outline or border of shapes, and the colour of points and lines
fill: Controls the interior of shapes such as bars, boxes, and polygons

4.3.1 Example: bar charts

Consider a bar chart where we want bars coloured by a categorical variable. Using colour only affects the outline:

ggplot(mpg, aes(x = class, colour = class)) +
  geom_bar() +
  labs(x = "Vehicle Class", y = "Count", colour = "Class")

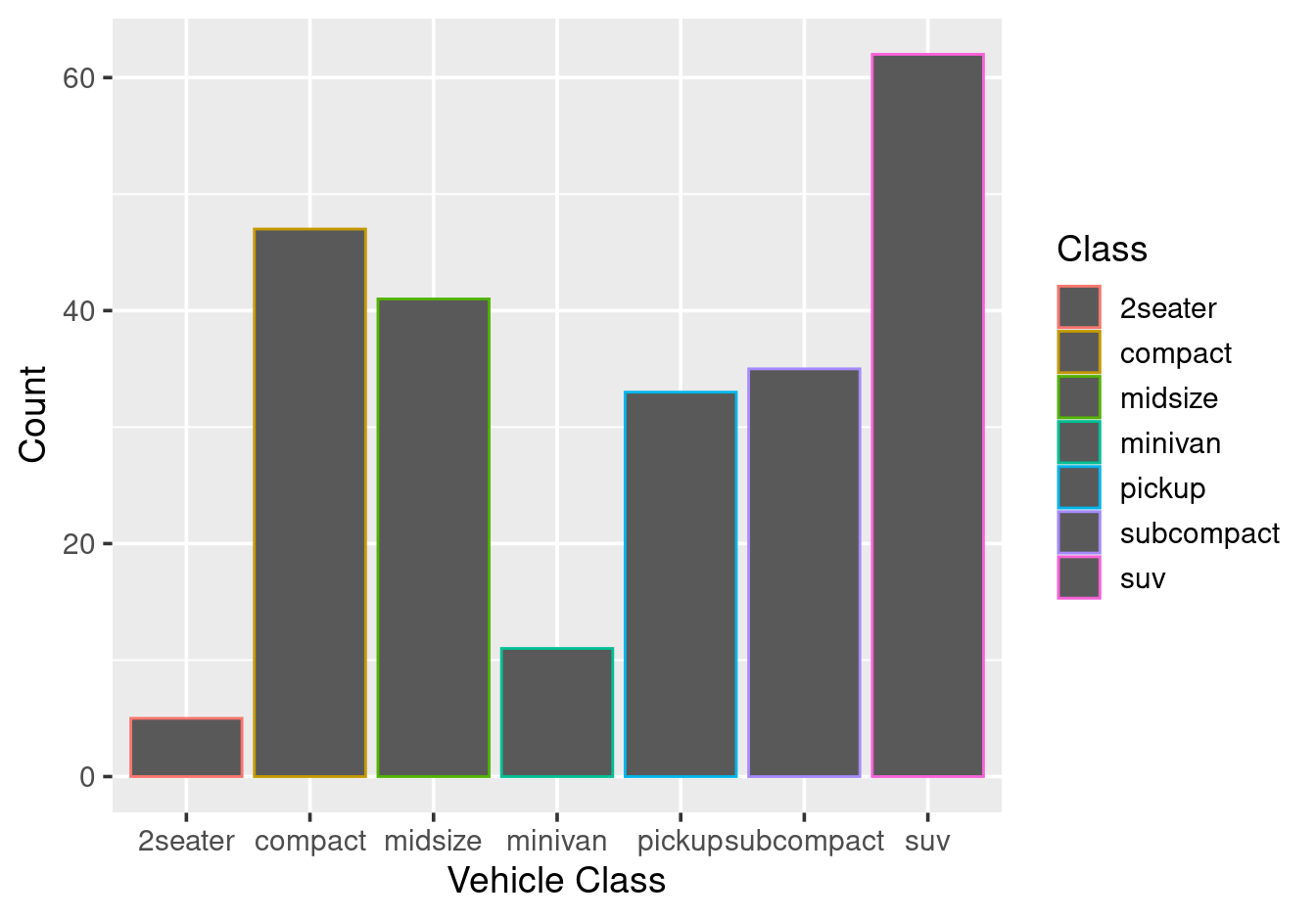

Figure 4.5: Using colour aesthetic — only the outline changes.

To fill the body of each bar, use fill instead:

ggplot(mpg, aes(x = class, fill = class)) +
  geom_bar() +
  labs(x = "Vehicle Class", y = "Count", fill = "Class")

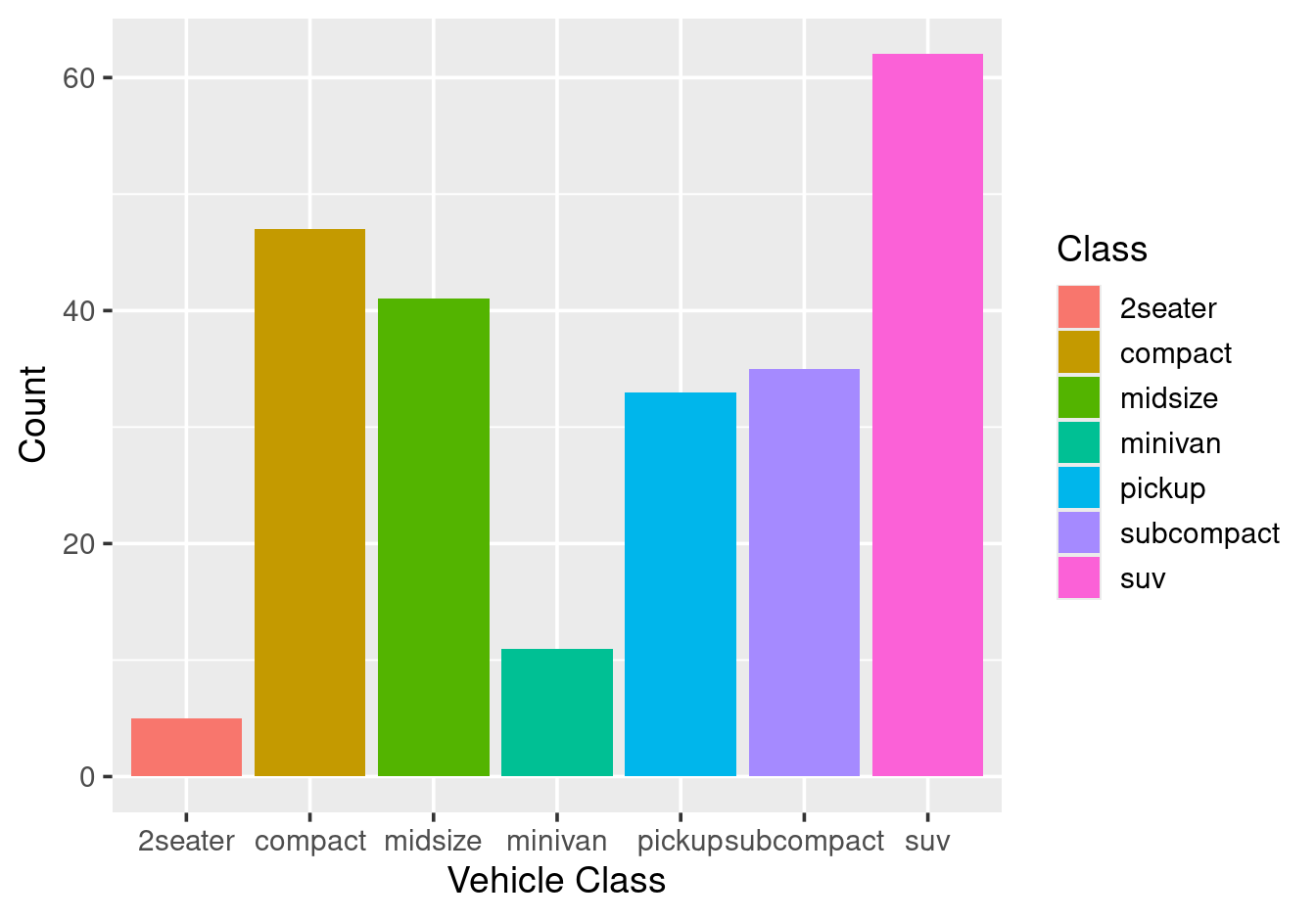

Figure 4.6: Using fill aesthetic — the entire bar is coloured.

In most cases with bar charts, boxplots, histograms, and similar geoms, you will want fill rather than colour.

4.3.2 When to use each

Geom	Use `colour` for	Use `fill` for
`geom_point()`	Point colour	(not applicable)
`geom_line()`	Line colour	(not applicable)
`geom_bar()`	Bar outline	Bar interior
`geom_boxplot()`	Box outline	Box interior
`geom_histogram()`	Bar outline	Bar interior
`geom_density()`	Line colour	Area under curve

Important: The remaining sections on colour scales apply equally to both colour and fill. The only differences are:

The argument name in aes(): colour = ... vs fill = ...
The scale function name: scale_colour_*() vs scale_fill_*()

4.4 Colour palettes

Once you map a variable to colour or fill, ggplot2 automatically assigns colours using a default scale. You can customise this using scale functions.

Scale functions for colour and fill can be divided into four groups based on the type of variable they handle:

4.4.1 Discrete (categorical) scales

For categorical variables (factors or character vectors), use these scales:

Function	Description
`scale_*_hue()`	Default; colours evenly spaced on the colour wheel
`scale_*_brewer()`	ColorBrewer palettes¹ (qualitative, sequential, diverging)
`scale_*_grey()`	Greyscale from light to dark
`scale_*_manual()`	Specify exact colours manually

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  scale_colour_hue() +  # This is the default

  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

$Default discrete scale: scale\_colour\_hue().$

Figure 4.7: Default discrete scale: scale_colour_hue().

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  scale_colour_brewer(palette = "Set2") +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

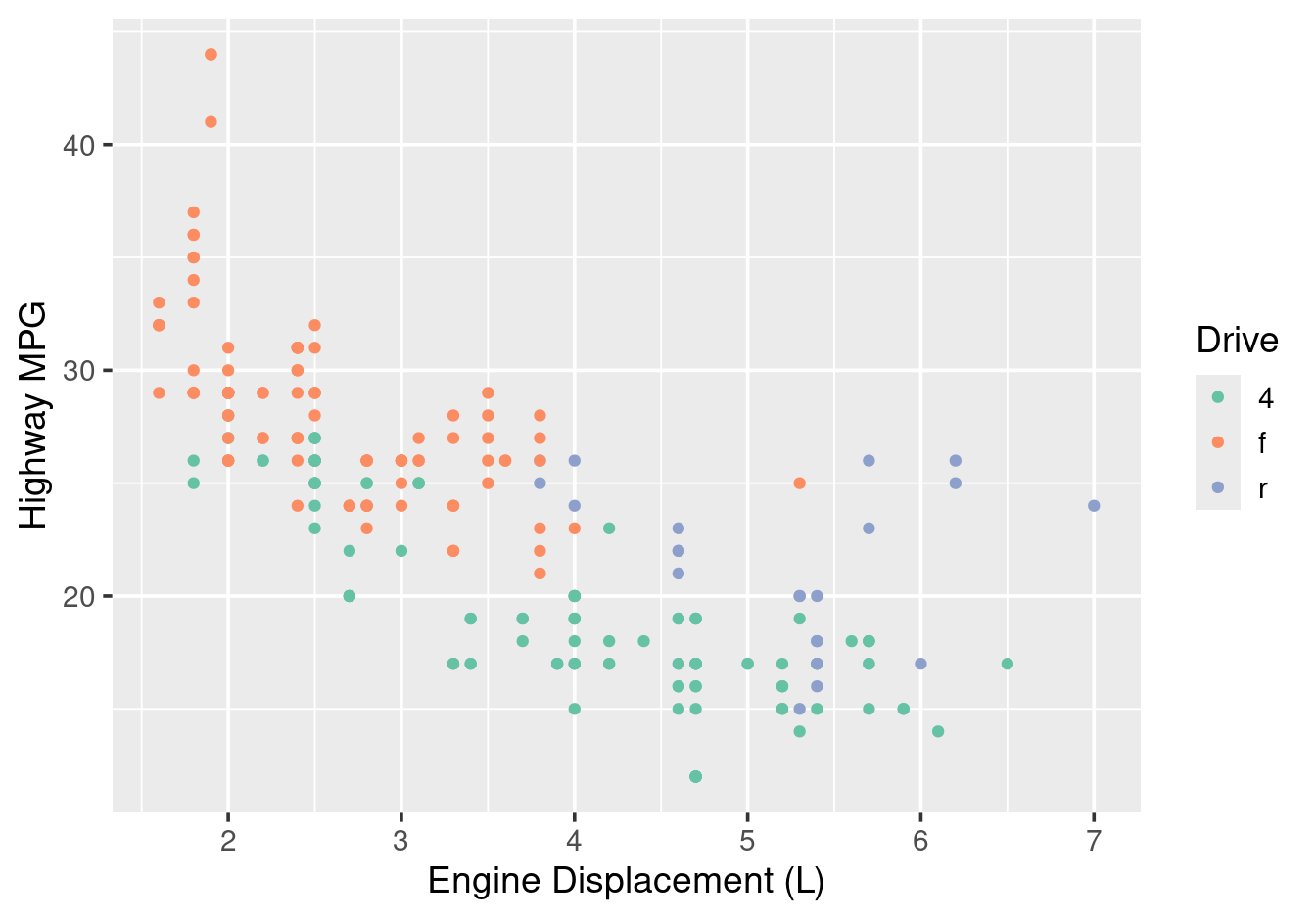

Figure 4.8: ColorBrewer qualitative palette for discrete variable.

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  scale_colour_grey() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

Figure 4.9: Greyscale palette for discrete variable.

4.4.2 Continuous scales

For continuous numeric variables, use these scales:

Function	Description
`scale_*_gradient()`	Two-colour gradient (sequential)
`scale_*_gradient2()`	Three-colour gradient with midpoint (diverging)
`scale_*_gradientn()`	Custom $n$-colour gradient
`scale_*_distiller()`	ColorBrewer palettes adapted for continuous data

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_gradient(low = "yellow", high = "red") +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

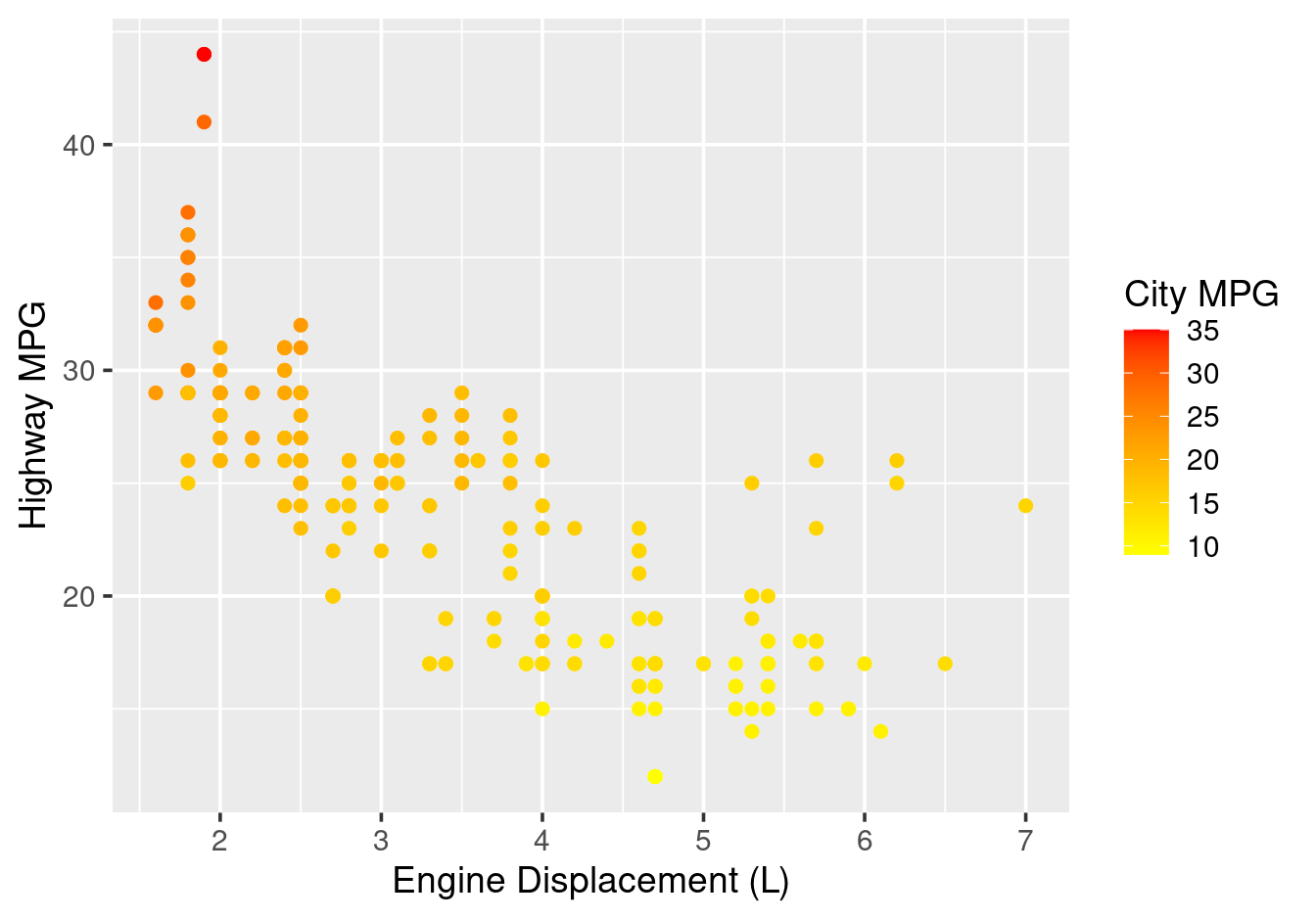

Figure 4.10: Two-colour sequential gradient.

mpg_centred <- mpg |>
  mutate(hwy_deviation = hwy - mean(hwy))

ggplot(mpg_centred, aes(x = displ, y = cty, colour = hwy_deviation)) +
  geom_point(size = 2) +
  scale_colour_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0) +
  labs(x = "Engine Displacement (L)", y = "City MPG",
       colour = "Highway MPG\ndeviation from mean")

Figure 4.11: Three-colour diverging gradient with midpoint.

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_distiller(palette = "YlOrRd", direction = 1) +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

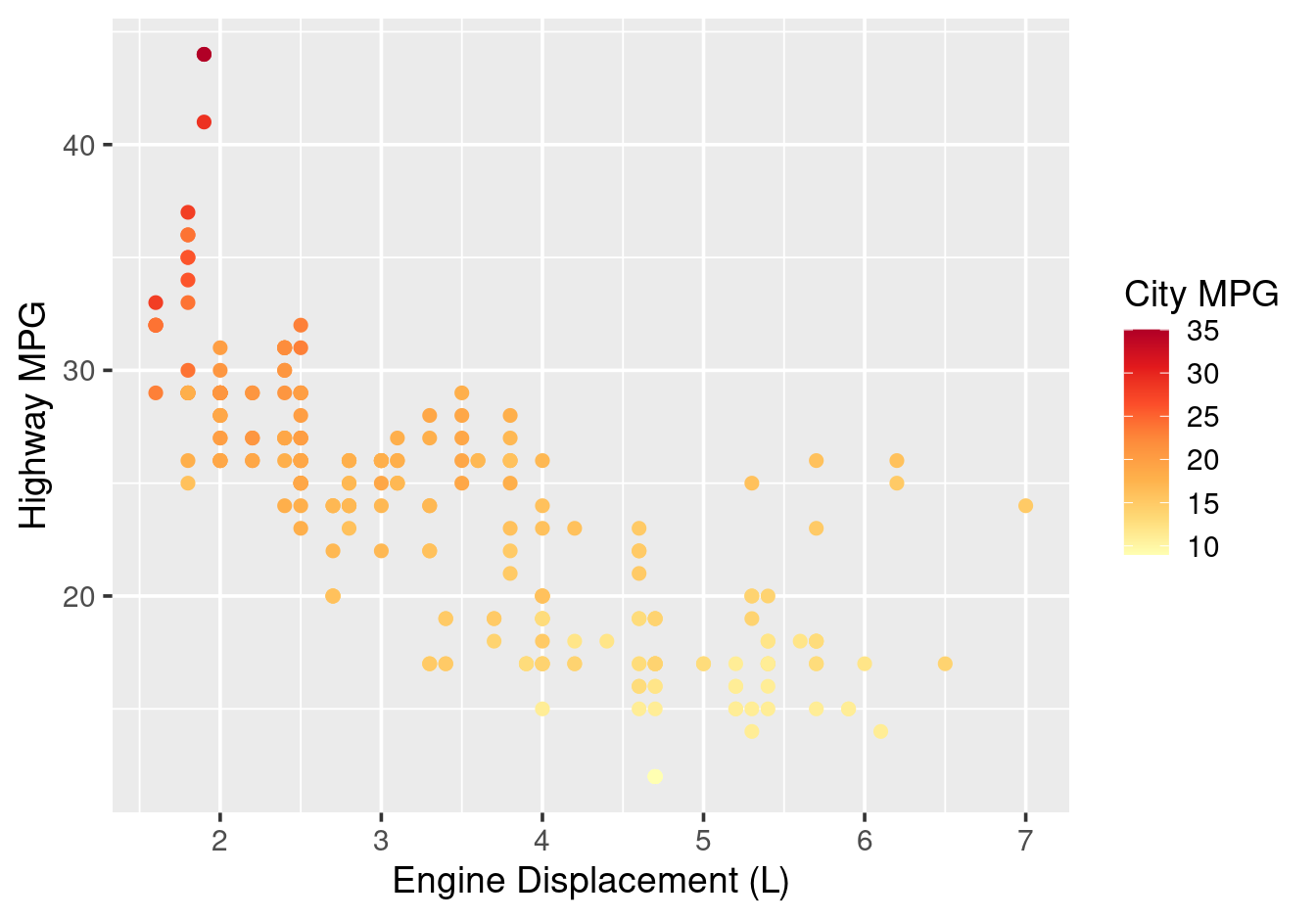

Figure 4.12: ColorBrewer palette adapted for continuous variable.

4.4.3 Binned scales

For continuous variables that you want to display in discrete bins, use these scales:

Function	Description
`scale_*_steps()`	Two-colour binned gradient (sequential)
`scale_*_steps2()`	Three-colour binned gradient with midpoint (diverging)
`scale_*_stepsn()`	Custom $n$-colour binned gradient
`scale_*_fermenter()`	ColorBrewer palettes for binned data

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_steps(low = "yellow", high = "red") +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

$Binned sequential scale using scale\_colour\_steps().$

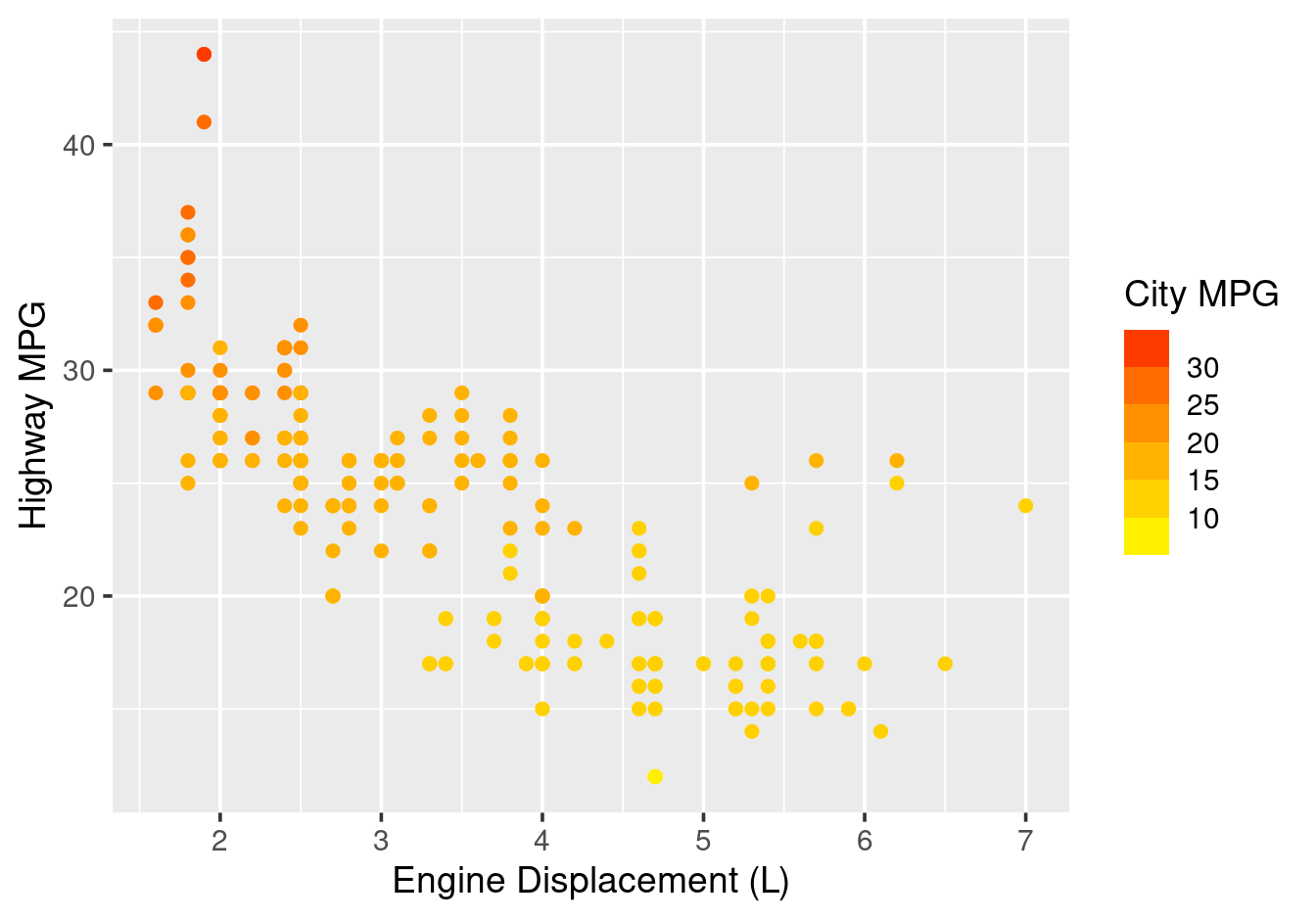

Figure 4.13: Binned sequential scale using scale_colour_steps().

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_fermenter(palette = "Greens", direction = 1) +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

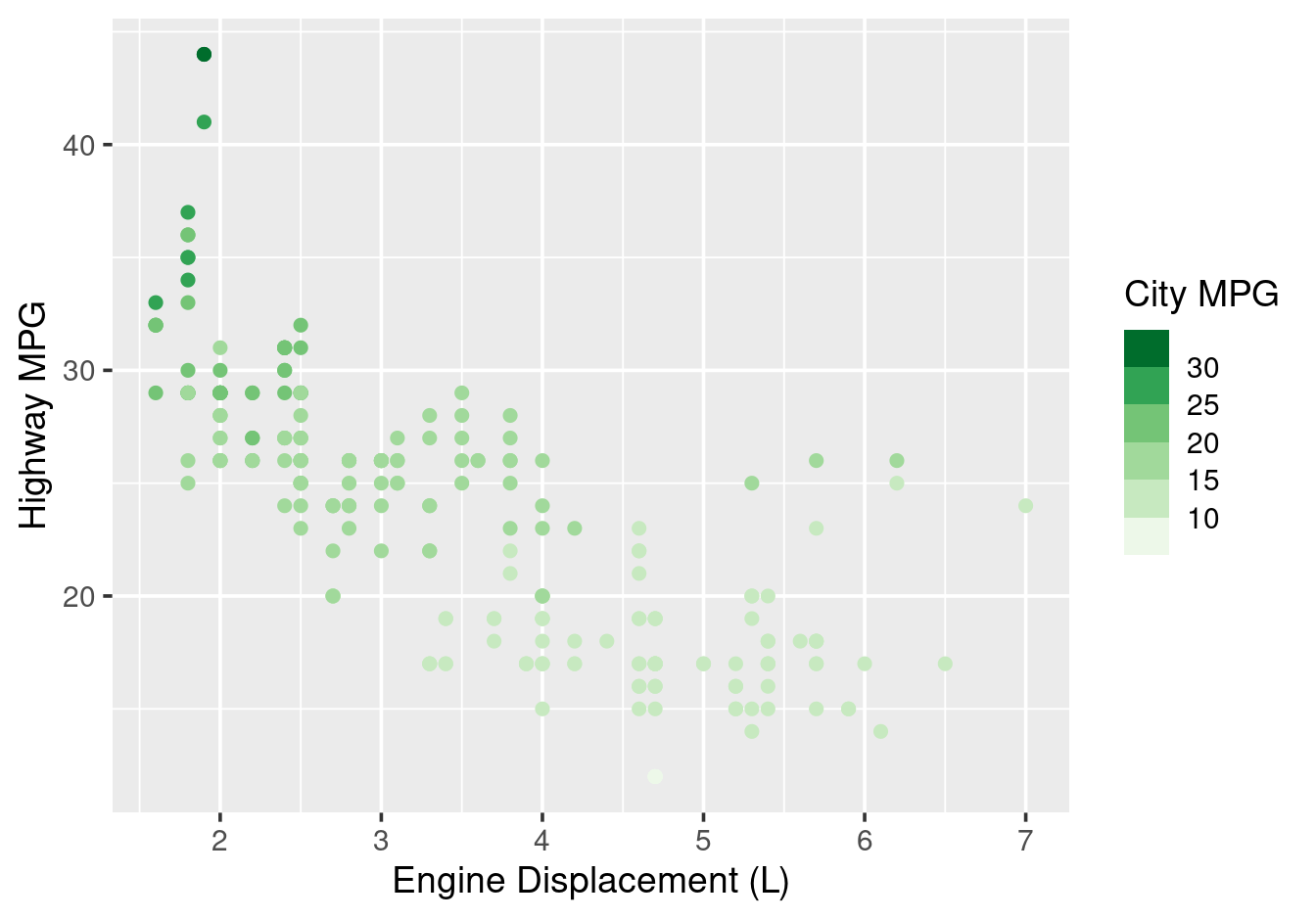

Figure 4.14: ColorBrewer palette for binned continuous variable.

4.4.4 Miscellaneous scales

Some scales serve special purposes:

Function	Description
`scale_*_identity()`	Use data values directly as colours (rarely needed)
`scale_*_date()`	For Date variables (see Chapter 8)
`scale_*_datetime()`	For datetime variables (see Chapter 8)

The scale_*_identity() function is used when your data already contains colour values (e.g., a column of hex codes). This is an advanced use case that we skip here.

4.4.5 Available ColorBrewer palettes

To see all available ColorBrewer palettes:

RColorBrewer::display.brewer.all()

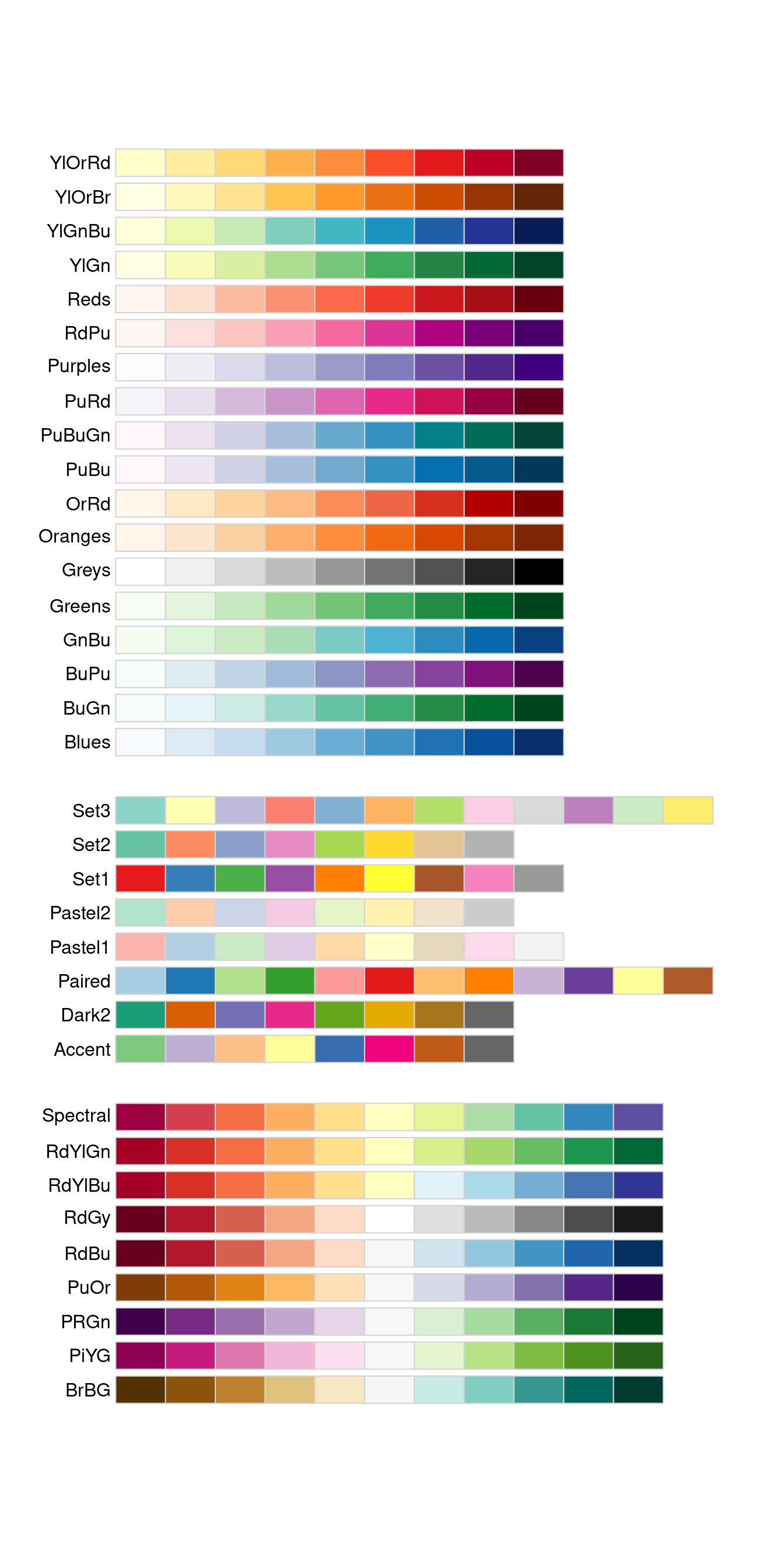

Figure 4.15: Available ColorBrewer palettes.

The palettes are organised into three types:

Sequential (top): For ordered data from low to high
Qualitative (middle): For categorical data with no order
Diverging (bottom): For data with a meaningful midpoint

4.5 Colour-blind-friendly palettes

Approximately 8% of men and 0.5% of women have some form of colour vision deficiency². When creating visualisations for a broad audience, it is important to choose palettes that remain distinguishable to colour-blind viewers.

4.5.1 The viridis palettes

The viridis family of palettes was specifically designed to be:

Perceptually uniform (equal steps in data appear as equal steps in colour)
Accessible to people with colour blindness
Readable when printed in greyscale

The viridis scales come in three variants matching the variable types:

Function	For
`scale_*_viridis_d()`	Discrete variables
`scale_*_viridis_b()`	Binned continuous variables
`scale_*_viridis_c()`	Continuous variables

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  scale_colour_viridis_d() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

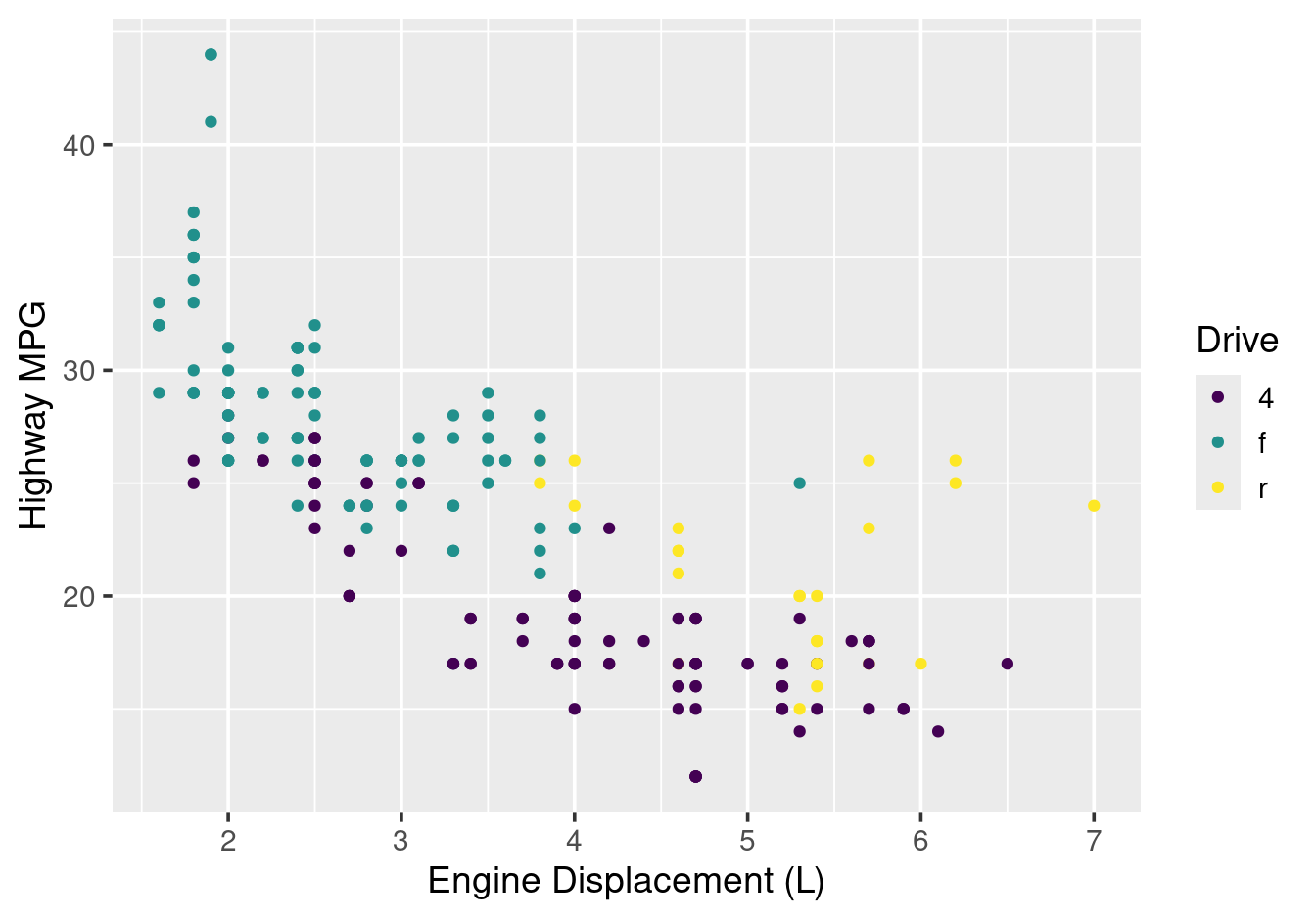

Figure 4.16: Viridis discrete palette.

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_viridis_c() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

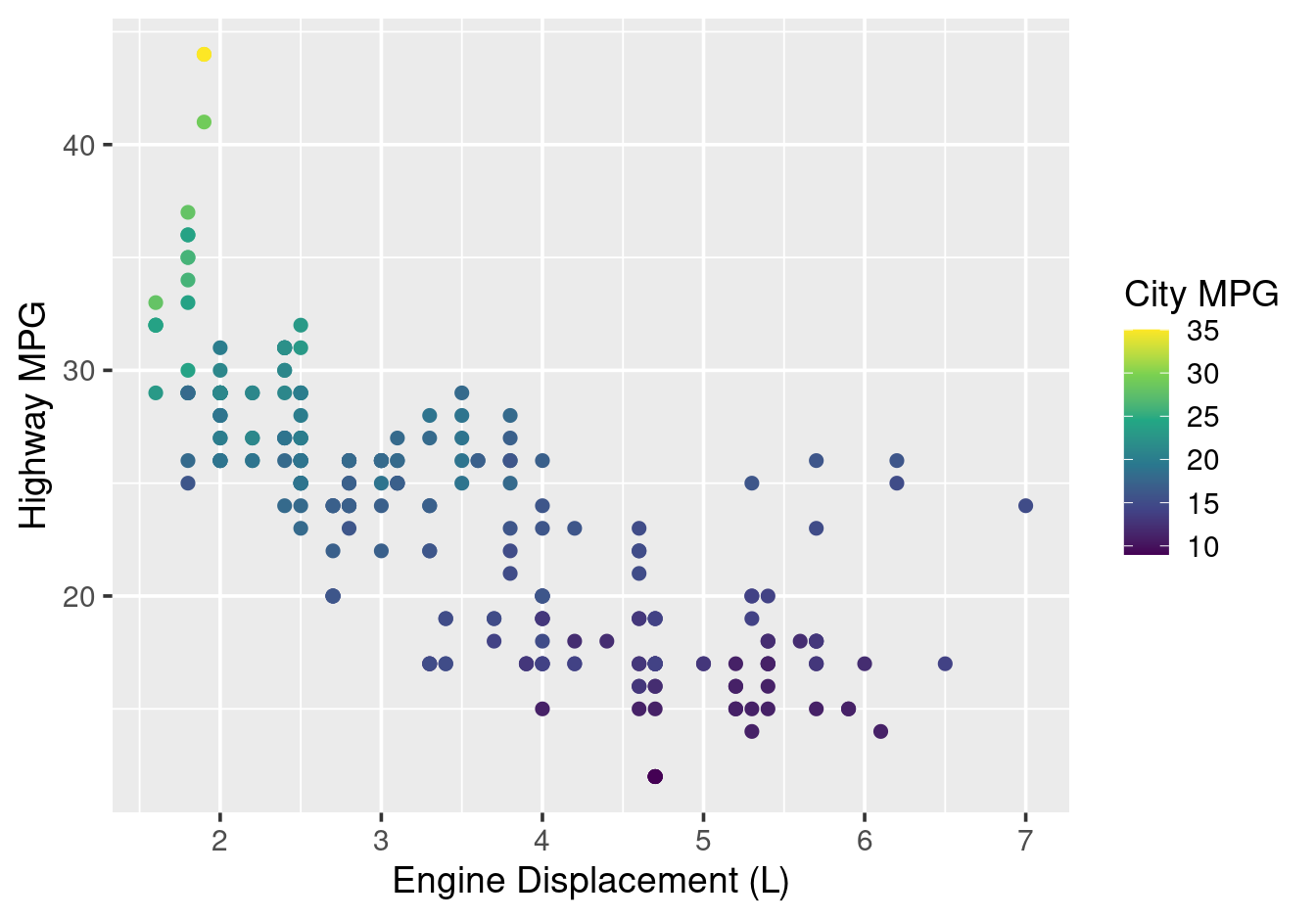

Figure 4.17: Viridis continuous palette.

ggplot(mpg, aes(x = displ, y = hwy, colour = cty)) +
  geom_point(size = 2) +
  scale_colour_viridis_b() +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "City MPG")

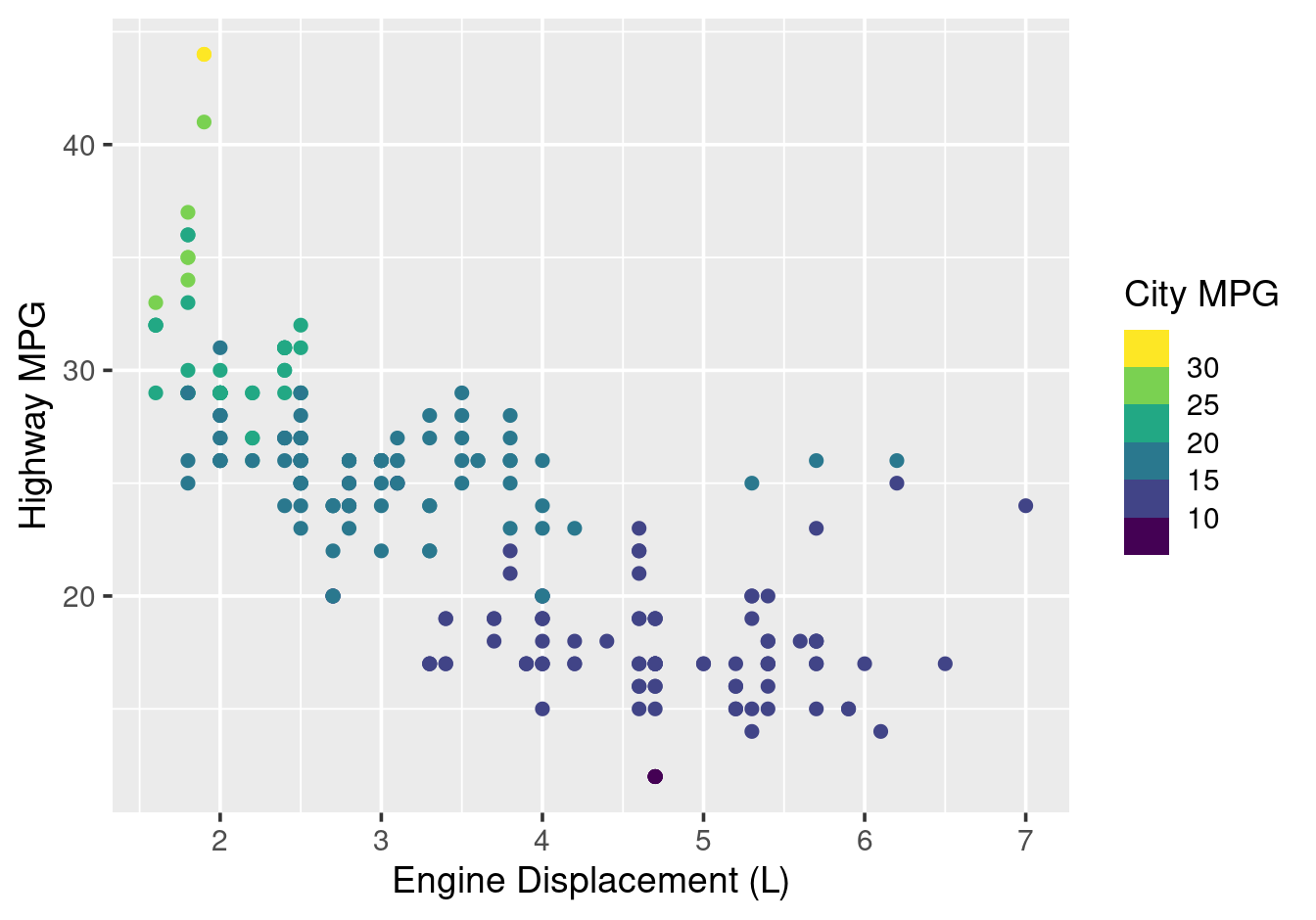

Figure 4.18: Viridis binned palette.

Additional viridis options are available via the option argument:

Option	Name	Notes
`"A"`	magma	Dark to light, via purple
`"B"`	inferno	Dark to light, via orange
`"C"`	plasma	Purple to yellow
`"D"`	viridis	Default; purple to green to yellow
`"E"`	cividis	Optimised for colour-blind viewers

ggplot(mpg, aes(x = drv, fill = drv)) +
  geom_bar() +
  scale_fill_viridis_d(option = "E") +
  labs(x = "Drive Type", y = "Count", fill = "Drive")

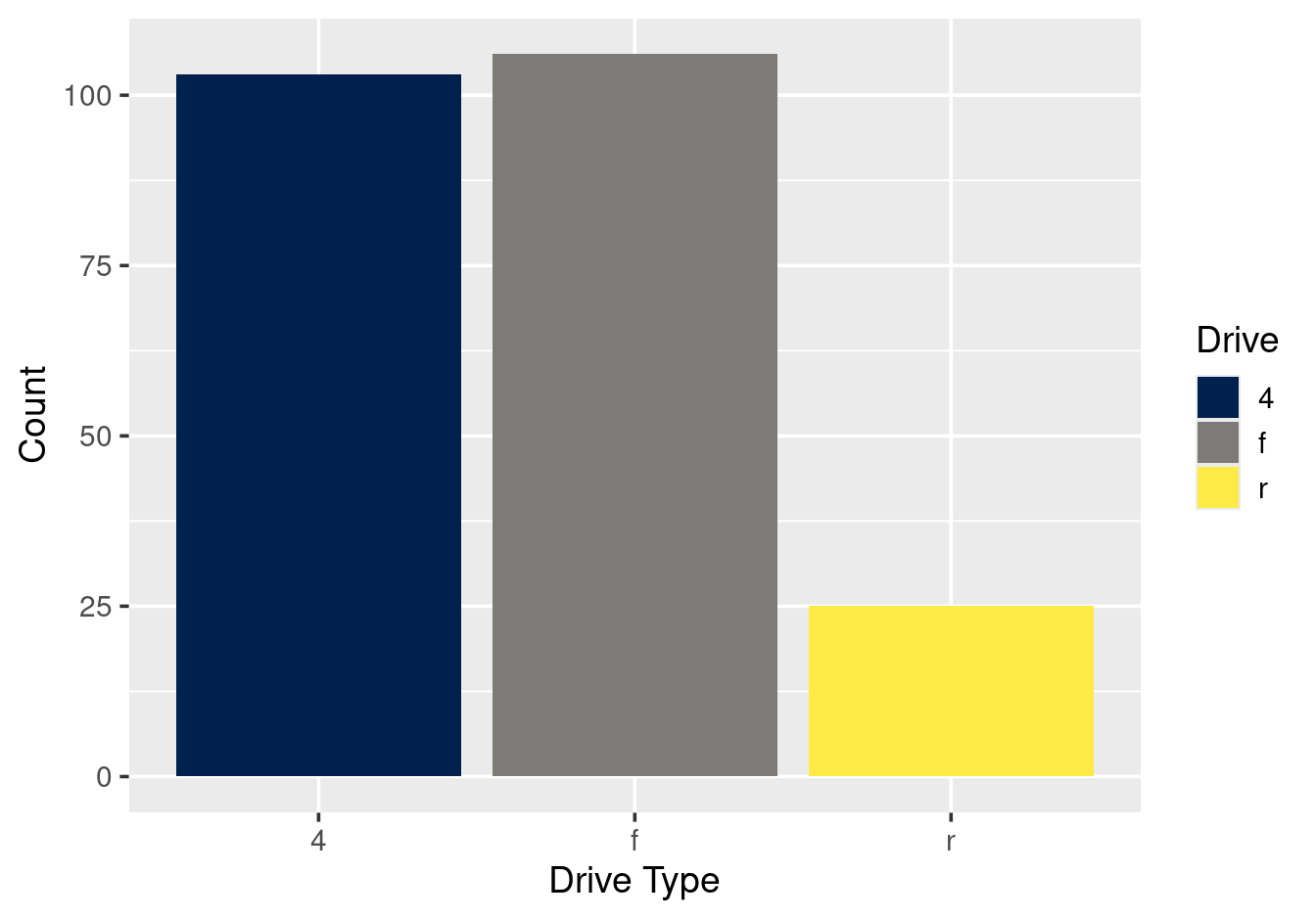

Figure 4.19: Viridis ‘cividis’ option — optimised for colour blindness.

For a complete list of viridis options and colour previews, see the viridis package vignette. Note, however, that you do not need to install or load the viridis package to use these colour scales in ggplot2 — the scale_*_viridis_*() functions are built into ggplot2 itself.

4.5.2 The Okabe-Ito palette

The Okabe-Ito palette³ is another colour-blind-friendly (CBF) option, particularly useful for discrete variables. You can use it with scale_*_manual():

# Get the Okabe-Ito colours
okabe_ito <- palette.colors(palette = "Okabe-Ito")
okabe_ito

## [1] "#000000" "#E69F00" "#56B4E9" "#009E73" "#F0E442"
## [6] "#0072B2" "#D55E00" "#CC79A7" "#999999"

ggplot(mpg, aes(x = displ, y = hwy, colour = drv)) +
  geom_point() +
  scale_colour_manual(values = okabe_ito[2:4]) +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", colour = "Drive")

$Using the Okabe-Ito palette with scale\_colour\_manual().$

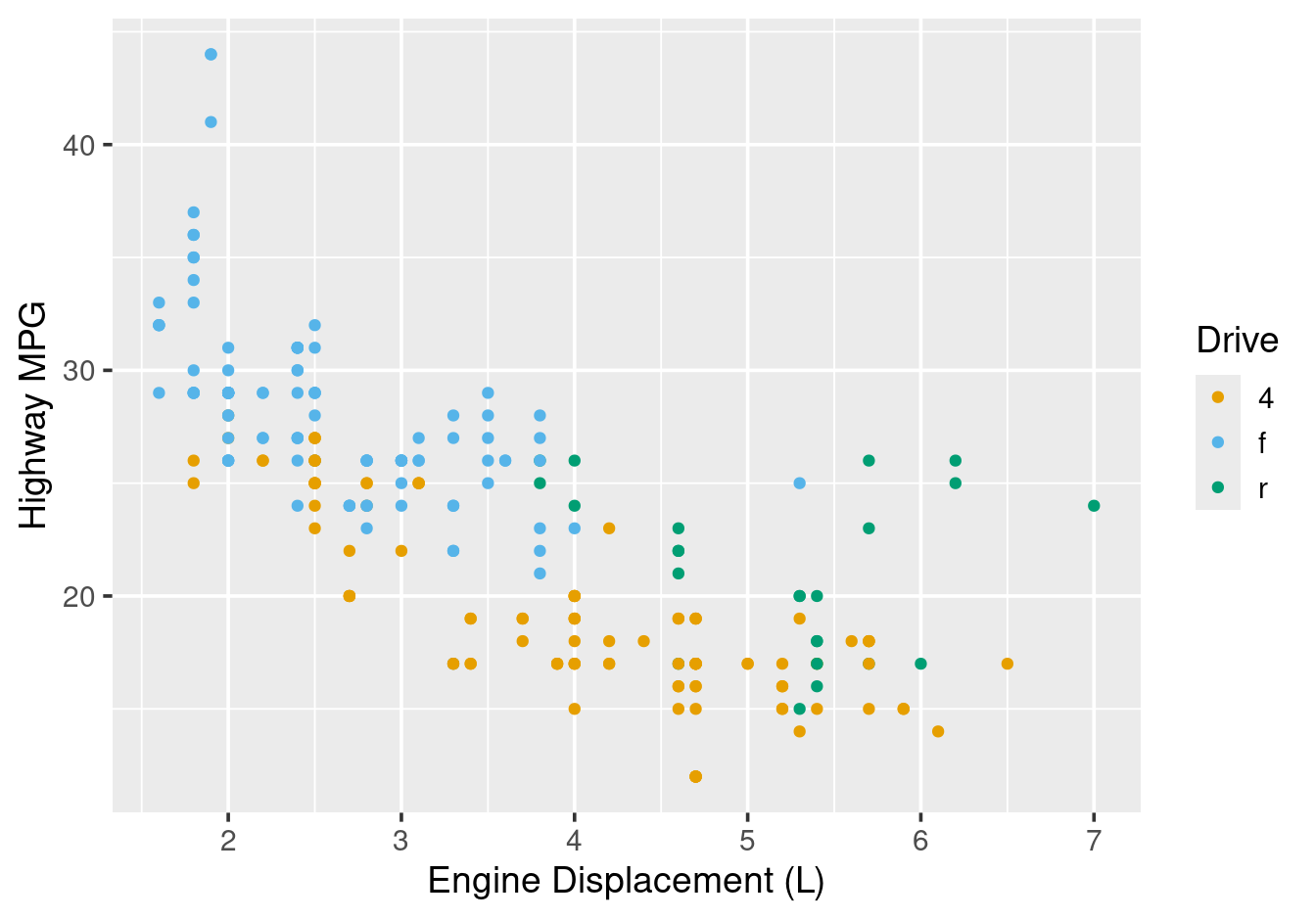

Figure 4.20: Using the Okabe-Ito palette with scale_colour_manual().

4.5.3 Specifying colours with hex codes

When using scale_*_manual(), you can specify exact colours using hexadecimal (hex) codes. A hex code is a six-character string starting with #, where the characters represent the red, green, and blue components (00 to FF each):

ggplot(mpg, aes(x = drv, fill = drv)) +
  geom_bar() +
  scale_fill_manual(values = c("4" = "#E69F00",   # Orange
                               "f" = "#56B4E9",   # Sky blue
                               "r" = "#009E73")) +  # Teal
  labs(x = "Drive Type", y = "Count", fill = "Drive")

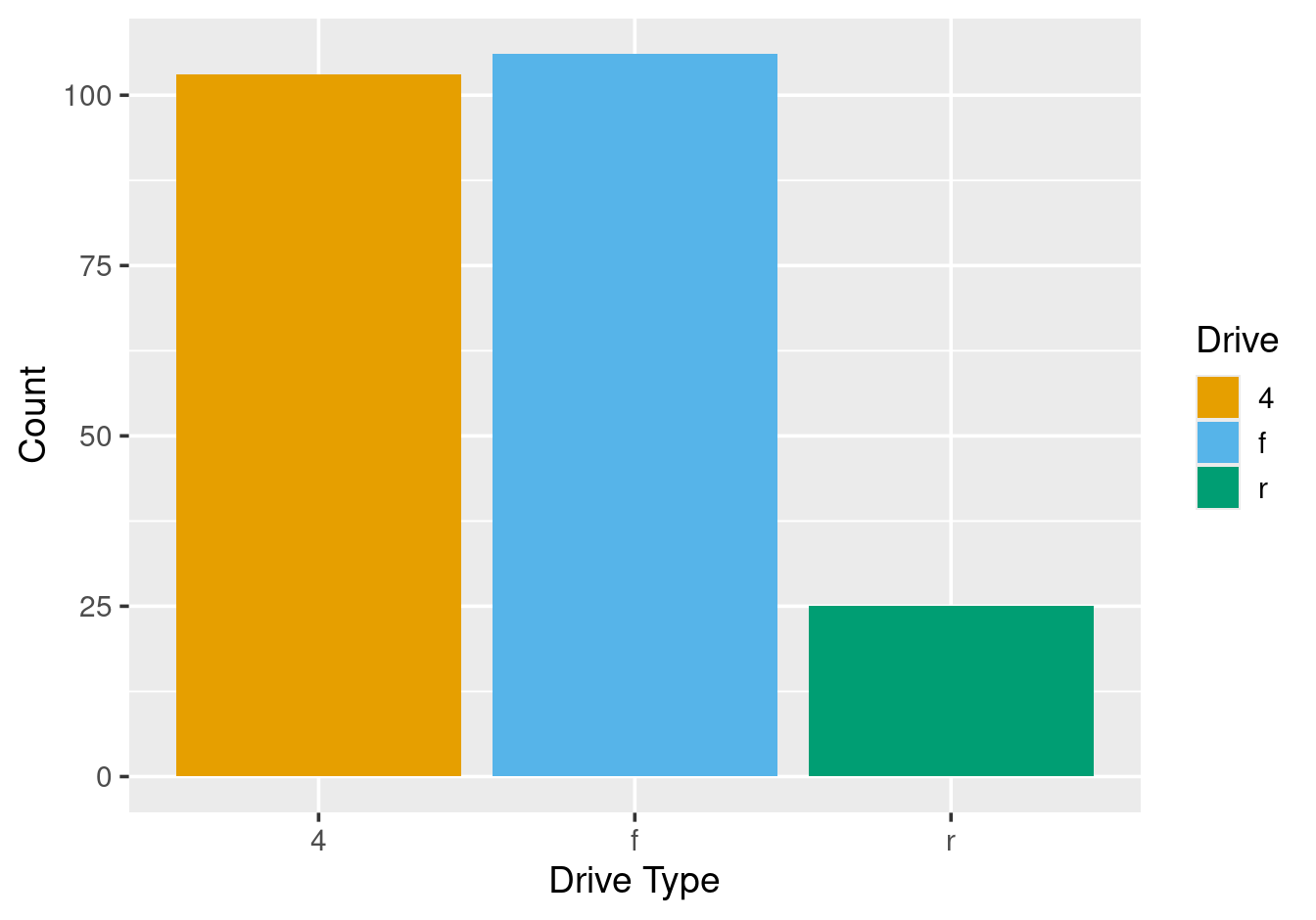

Figure 4.21: Specifying exact colours using hex codes.

You can find hex codes for specific colours using online colour pickers, or use named colours in R (see colors() for a list of 657 named colours).

4.6 Opacity with `alpha`

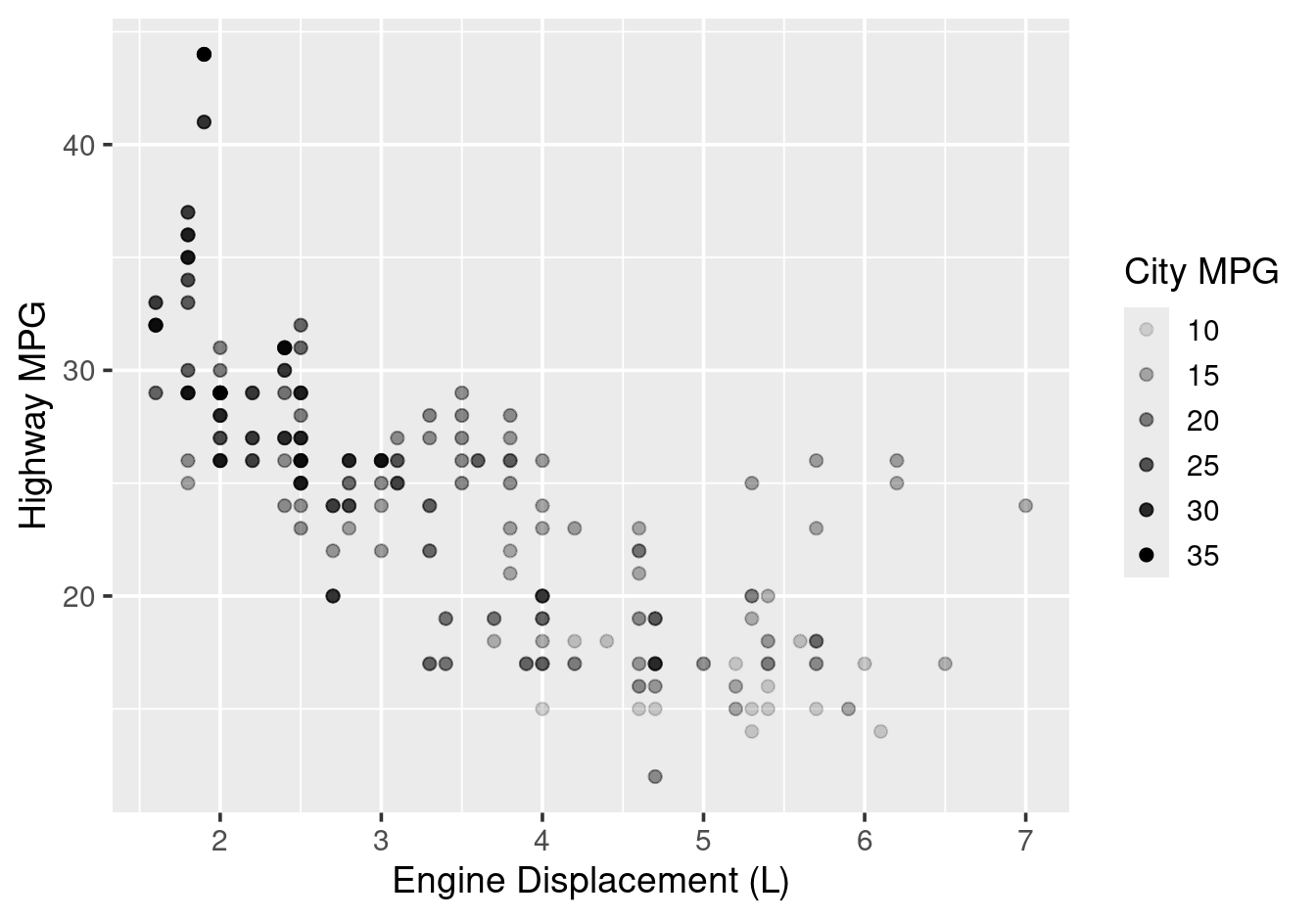

The alpha aesthetic controls the opacity (transparency) of graphical elements. Like colour, alpha can be mapped to a variable to encode additional information.

When the plot uses only black (i.e., no colour aesthetic is mapped), alpha behaves similarly to a greyscale palette: lower alpha values make points appear lighter (more transparent), while higher values make them darker (more opaque). In this sense, scale_alpha_*() functions can serve a similar purpose to scale_*_grey() for encoding a variable visually.

ggplot(mpg, aes(x = displ, y = hwy, alpha = cty)) +
  geom_point(size = 2) +
  labs(x = "Engine Displacement (L)", y = "Highway MPG", alpha = "City MPG")

Figure 4.22: Mapping a variable to alpha (opacity).

The scale functions for alpha follow the same pattern as colour scales:

Function	For
`scale_alpha()`	Continuous variables (default)
`scale_alpha_continuous()`	Continuous variables (explicit)
`scale_alpha_discrete()`	Discrete variables
`scale_alpha_binned()`	Binned continuous variables
`scale_alpha_manual()`	Manual specification

ggplot(mpg, aes(x = displ, y = hwy, alpha = cty)) +
  geom_point(size = 2) +
  scale_alpha(range = c(0.2, 1)) +  # From 20% to 100% opacity
  labs(x = "Engine Displacement (L)", y = "Highway MPG", alpha = "City MPG")

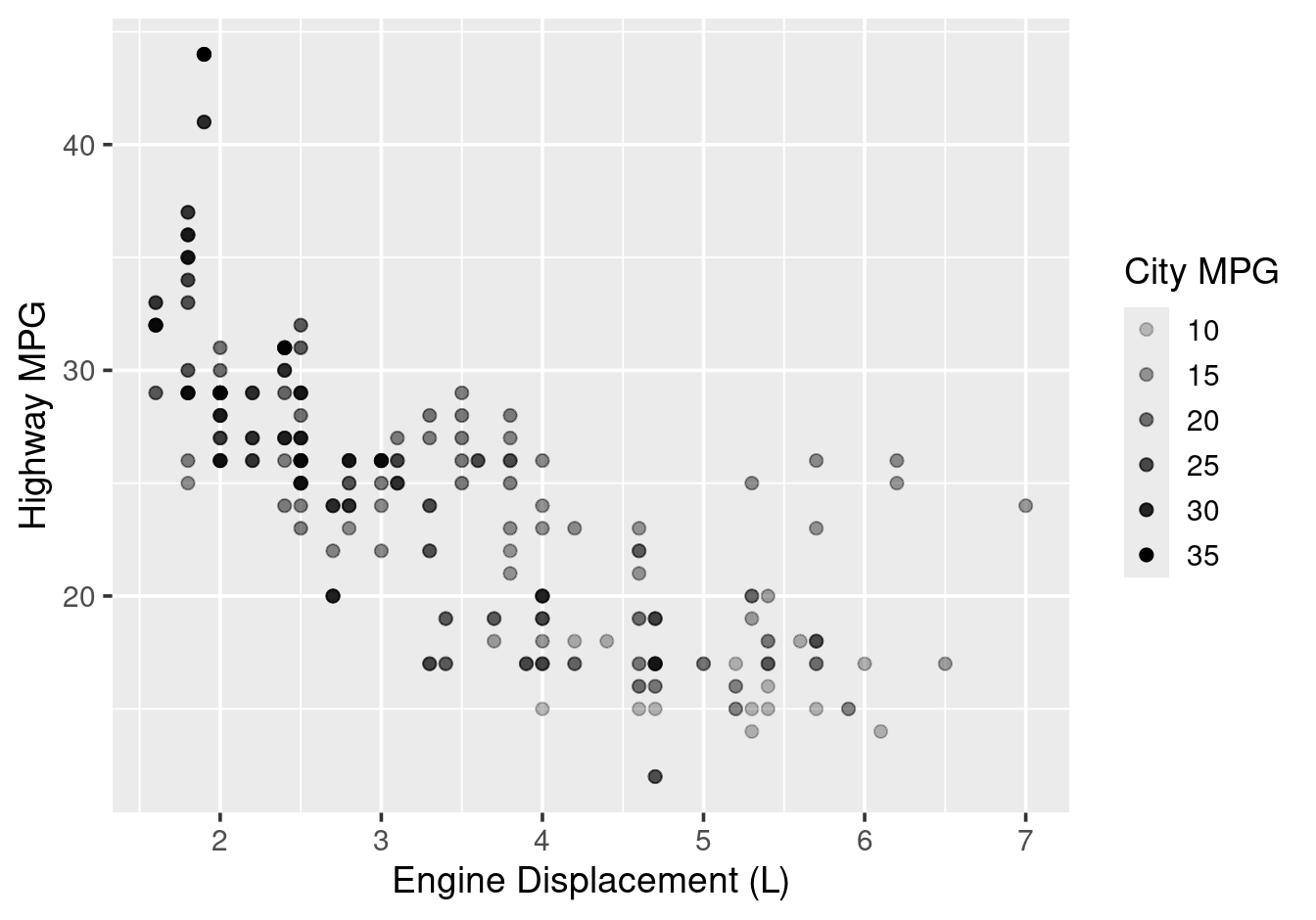

Figure 4.23: Customising the alpha range.

Alpha is particularly useful when you have overlapping points, as it allows you to see density while still encoding a variable.

4.7 Summary

Colour encodes an extra dimension of data, just like the $x$ and $y$ axes. Use colour for points, lines, and outlines; use fill for bar and box interiors.

4.7.1 Colour scale functions

The table below summarises the main colour scale functions, organised by variable type. All entries share the scale_*_ prefix (replace * with colour, color, or fill); only the suffixes are shown. The exception is the greyscale/opacity row, where the scale functions are spelled out in full because alpha replaces the * rather than the suffix. Lastly, CBF stands for colour-blind-friendly.

Discrete	Binned	Continuous	Remarks
`discrete()`	`binned()`	`continuous()`	Defaults, used when none specified; not CBF
`hue()`	—	—	Default discrete; evenly spaced on colour wheel; not CBF
`grey()`, `scale_alpha_discrete()`, `scale_alpha_manual()`	—	—	Greyscale or opacity; good for print; CBF (alpha only useful when plot is otherwise uncoloured)
`brewer()`	`fermenter()`	`distiller()`	ColorBrewer palettes; qual/seq/div available; not CBF
—	`steps()`	`gradient()`	Sequential; two colours (low to high); generally not CBF
—	`steps2()`	`gradient2()`	Diverging; three colours with midpoint; not CBF
—	`stepsn()`	`gradientn()`	Custom $n$-colour gradient; not CBF
`viridis_d()`	`viridis_b()`	`viridis_c()`	Viridis palettes; CBF
`manual()`	—	—	Manual specification; CBF with Okabe-Ito

4.7.2 Key points

Naming convention & spelling: Scale functions follow scale_<aesthetic>_<type>(), where the aesthetic can be colour (or color for identical behaviour), or fill when colouring interiors of shapes.
Opacity: Only the default and manual ones (those with suffixes discrete, binned, continuous, manual) apply to opacity i.e. alpha being the aesthetic.
Palette types:
- Sequential: For ordered data from low to high (gradient, steps, distiller with sequential palettes)
- Diverging: For data with a meaningful midpoint (gradient2, steps2, distiller with diverging palettes)
- Qualitative: For unordered categories (brewer with qualitative palettes, hue)
- Colour-blind friendly: viridis family, Okabe-Ito via manual
When in doubt: Use scale_*_viridis_*() for a perceptually uniform, colour-blind-friendly palette that works for most situations.
